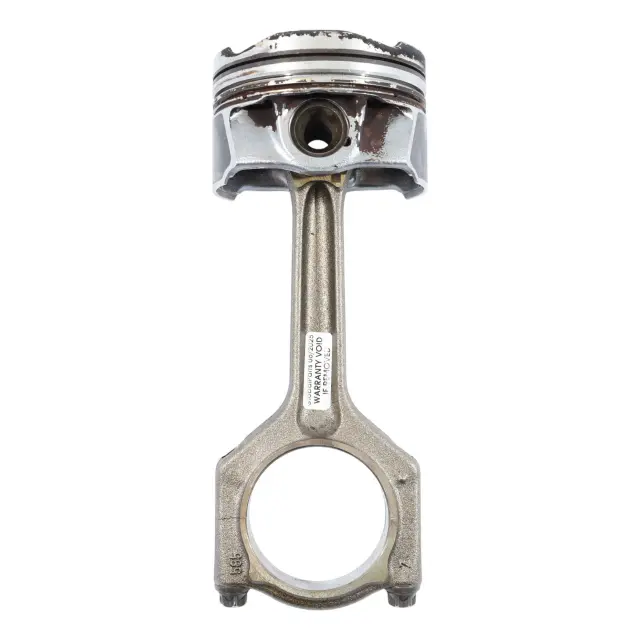

Audi S4 B9 3.0 TFSI CWGD Piston Connecting Rod Crankshaft Cyl 1-3 06M107066AB

Description

Audi S4 B9 3.0 TFSI CWGD Piston Connecting Rod Cyl 1-3 is an original component from the Pistons and rings group, designed for the 3.0 TFSI unit in the Audi S4 B9 generation. The product comes from disassembly, which allows for an economical yet technically correct repair of the crankshaft-piston section in the CWGD engine.

Specifications and technical data

• SKU: 06M107066AB
• Mark: Audi
• Condition: Used
• OEM Part Number: 06M107066AB
• Substitutable numbers: 06M107066AB, 06M 107 066 AB
• Category: Pistons & Rings

Purpose and function in the 3.0 TFSI CWGD engine

The presented piston with connecting rod supports cylinders 1–3 in the 3.0 TFSI CWGD engine, responsible for precisely transferring combustion forces to the crankshaft. Using an original Audi component guarantees the preservation of factory geometry, proper balance, and compliance with the engine’s operating parameters.

Replacing the piston-connecting rod set in this area of the engine is crucial for repairs following seizure, overheating, or mechanical damage, and choosing an OEM component minimizes the risk of improper operation, excessive vibrations, or loss of compression.

Benefits of using an original Audi piston with connecting rod

Compared to aftermarket replacements, the original Audi element provides:

• factory fitment for cylinder diameter and piston stroke,
• material compatibility with other components of the crankshaft-piston system,
• stable operating parameters under loads typical for the 3.0 TFSI unit,
• easier diagnostics and service in the future thanks to maintaining manufacturer specifications.

For turbocharged engines such as the 3.0 TFSI, using the correct piston with connecting rod has a direct impact on maintaining proper boost pressure, combustion chamber sealing, and smooth operation across the entire rev range.

Condition, verification, and preparation for installation

The item comes from an Audi vehicle disassembly, which allows for maintaining original specifications while reducing repair costs. Before installation, a standard workshop procedure is recommended: checking clearances, measuring diameters, assessing mating surfaces, and verifying the gudgeon pin bores and the condition of the connecting rod big end.

To ensure long-term and stable engine operation, it is worth combining the replacement of the piston and connecting rod with an inspection of other crankshaft section elements, such as bearings, the crankshaft, or the lubrication system. This approach reduces the risk of needing further engine work after a short mileage.

Integration with the piston-ring system

As an element of the Pistons and rings category, the presented component works directly with piston rings responsible for sealing the combustion chamber and controlling the oil film on the cylinder walls. A correctly selected and installed piston-connecting rod set helps maintain:

• stable compression in cylinders 1–3,
• proper engine oil consumption,
• appropriate piston operating temperature due to efficient heat dissipation,
• even loading of the crankshaft.

This is particularly important in high-output units, where mechanical and thermal loads are higher than in standard naturally aspirated engines.

If you are planning a comprehensive repair or upgrade of the engine area in your Audi and need other elements from the same group, such as pistons, connecting rods, or piston rings, check the available parts in the Audi Pistons and rings category.
