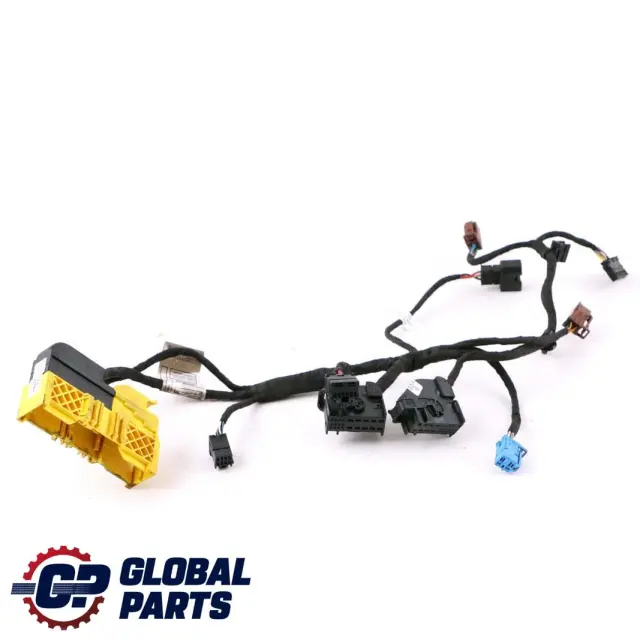

BMW 1 3 4 Series F20 F30 F32 Seat Wiring Loom Electric Harness 9258231 9258228

Description

BMW 1 3 4 Series F20 F30 F32 Seat Wiring Loom Electric Harness is an original seat wiring harness from the Wires, harnesses and connectors category, designed for BMW 1, 3, and 4 Series F-generation models. This solution was created for precise connection of the seat installation with the vehicle’s factory electrics, ensuring stable power supply and communication for comfort modules.

Specifications and technical data

• SKU: 9258231
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9258231
• Substitutable numbers: 9258231, 9258228, BG
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function of the BMW seat wiring harness

The presented seat wiring harness has been designed specifically for the F20, F30, and F32 platforms, which means it fits the electrical architecture of these models without the need for modifications. It is responsible for transmitting signals and power between the seats and the body wiring, enabling the correct operation of functions such as electric adjustments, occupancy sensors, seat belt tensioners, or side airbags – in accordance with the specific car’s configuration.

Construction and technical advantages

As an element from the Wires, harnesses and connectors group, this seat wiring harness uses factory BMW connectors, which facilitates plug-and-play installation in dedicated mounting points. Properly routed wires minimize the risk of abrasion under the seat rails, and the correct selection of wire cross-sections promotes voltage stability and reduces drops over longer sections of the installation.

In practice, this translates into:

• more reliable operation of safety and comfort systems in the seat,
• reduced risk of controller errors related to circuit breaks,
• easier diagnostics thanks to the preservation of original color coding and wire routing logic.

Benefits of using an original BMW wiring harness

Using an original seat wiring harness instead of a damaged or modified installation allows for restoring factory connection logic without compromises. Proper fitment with the seat and floor structure limits mechanical stress on the wires, which is particularly important in heavily used vehicles. It is also a beneficial solution for post-accident repairs when it is necessary to replace components related to seat safety systems.

The used condition of this harness means it comes from vehicle dismantling, retaining original connectors and wire routing consistent with the factory design. For workshops and individual users, this is often a more cost-effective alternative to purchasing a new component, while maintaining high installation compatibility.

Professional use in service and retrofits

The BMW seat wiring harness will work well both for standard replacement of a damaged installation and for more advanced work, such as retrofitting the car with different seats within the same platform. Factory wire configuration facilitates integration with the existing body installation, which is important for maintaining correct communication with control modules and avoiding errors in diagnostic systems.

If you are planning a comprehensive repair or upgrade of the seat and floor area in your BMW and need other elements from the same group, such as additional harnesses, connectors, or wire sections, check the available parts in the BMW Wires, harnesses and connectors category.
