BMW 1 3 Series E87 E90 E92 E93 Map Fuse Grouping 9144488

Description

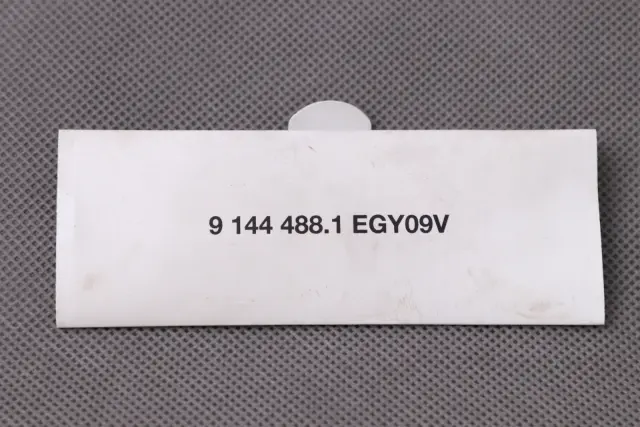

BMW 1 3 Series E87 E90 E92 E93 Map Fuse Grouping is a practical, original electrical system component that facilitates quick identification of circuits in the fuse box. Thanks to the clear layout of fuse s, this card allows for more efficient fault diagnosis and safe maintenance work. It is a particularly useful solution when upgrading equipment, checking electrical loads, and during any intervention in the power supply system.

Specifications and technical data

• SKU: 9144488
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9144488
• Substitutable numbers: 61149144488, 9144488
• Category: Other Interior Parts & Accessories

Function and application of the fuse legend card

The BMW 1 3 Series E87 E90 E92 E93 Map Fuse Grouping designed for BMW E87, E90, and E92 models acts as a technical “map” of the electrical protection system. Information on the assignment of individual fuses to specific circuits is gathered on a single, compact component, which significantly reduces the time required to locate the correct socket.

In practice, the card supports, among other things:

• efficient identification of circuits responsible for specific vehicle functions,
• safe fuse replacement without the risk of error,
• fault diagnosis in the electrical system without the need to refer to external diagrams,
• load monitoring and planning of potential equipment modifications.

Benefits of using an original BMW card

The original legend card prepared for specific BMW models ensures precise fitment to the factory-installed fuse layout. This means consistency with the actual socket arrangement, function s, and the logic applied by the vehicle manufacturer.

Key advantages of this solution include:

• clear, organized markings consistent with BMW service documentation,
• easier communication with a service center or auto electrician thanks to a common reference to the same map,
• reduced risk of misdiagnosis resulting from incorrect or universal s,
• maintaining consistency with the factory interior equipment standard.

Characteristics of the used component

The presented BMW 1 3 Series E87 E90 E92 E93 Map Fuse Grouping comes from the secondary market, which means it is a used item. This type of component, as an informational part, is not subject to typical wear and tear like mechanical or moving parts, which is why it can be successfully reused in another vehicle.

Choosing a used element of this type is a reasonable compromise between cost and functionality – you retain the original manufacturer markings while reducing expenses associated with restoring the vehicle’s equipment completeness.

Practical installation and operating tips

Installing the fuse legend card in a BMW E87, E90, or E92 is generally simple and involves placing it in the manufacturer-designated location near the fuse box. It is worth paying attention to:

• the correct orientation of the card relative to the socket layout,
• stable seating in the holders or pocket to avoid displacement during operation,
• maintaining the legibility of the prints – the card should be stored in a dry, sheltered place.

Thanks to this, the fuse map will remain easily accessible for both the user and the service center, which will speed up any diagnostic and maintenance work in the electrical system area.

If you are planning a comprehensive repair or upgrade of the electrical zone in your BMW and need other elements from the same group, such as additional markings, holders, or covers related to the fuse system, check the available parts in the Other BMW category.

To better understand how manufacturers design electrical systems and protections in high-performance cars, it is worth reading an analysis of sports model designs – a detailed comparison of solutions used in high-power vehicles can be found in the article Audi RS vs other models – what is hidden under the hood and chassis?.
