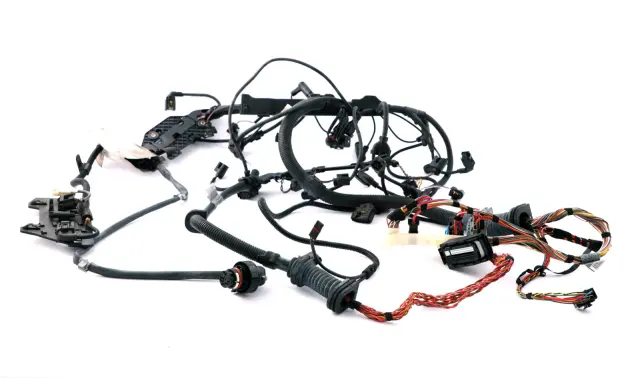

BMW 5 Series E60 E61 LCI 525d M57N2 Engine Wiring Loom Harness DDE Automatic

Description

BMW 5 Series E60 E61 LCI 525d M57N2 Engine Wiring Loom Harness DDE Automatic is an original electrical installation component, designed for precise compatibility with the M57N2 unit and the factory DDE controller. This used, complete wiring harness from the Cables, harnesses, and connectors category allows for professional repair of engine circuits without the need for installation modifications.

Specifications and technical data

• SKU: rhd-7796846
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7796846
• Substitutable numbers: 12517796846 12517803362, 7796846 7803362, 12517794826 12517790177 12517792272, 7794826 7790177 7792272
• Gearbox type: Automatic
• Category: Wiring Harnesses, Cables & Connectors

Purpose and compatibility

The presented wiring harness has been designed specifically for the BMW 5 Series E60/E61 LCI 525d with the M57N2 engine, equipped with an automatic transmission. This ensures a perfect match for the factory DDE controller and the layout of connectors in the engine bay, which facilitates installation and reduces the risk of installation errors.

By maintaining the original geometry of the wires and connectors, the harness allows for the restoration of the factory installation routing, which is essential for both reliability and subsequent computer diagnostics.

Structure and function in the powertrain

The engine wiring harness plays a key role in connecting the DDE controller with sensors, actuators, and the M57N2 unit’s equipment. It is responsible for transmitting signals to, among others, injectors, temperature, pressure, and position sensors, as well as for powering selected components within the engine bay.

The version dedicated to the automatic transmission is configured for the specific requirements of the powertrain, which promotes stable engine operation, correct communication with control modules, and the proper functioning of comfort and safety features.

Service application and advantages of the original harness

Choosing an original, used engine wiring harness for the BMW 5 E60/E61 LCI 525d M57N2 is particularly beneficial in situations where:

• the existing installation has suffered mechanical or thermal damage,
• there are hard-to-locate circuit breaks or problems with controller communication,
• it is necessary to replace the complete harness instead of performing makeshift repairs on individual wires.

The original design ensures electrical consistency with the factory BMW system, which minimizes the risk of incompatibility typical of aftermarket replacements and facilitates subsequent diagnostics using factory service software.

Condition, installation, and practical aspects

The item is offered as a used part, which allows for a significant reduction in repair costs while maintaining the original BMW specification. Before installation, it is recommended to perform a standard inspection of connectors, insulation, and mounting points, followed by installation according to the factory wire routing in the engine bay.

Thanks to the preservation of original wire lengths and factory plugs, the harness is a plug-in solution within the engine system, which speeds up service work and limits the need for interference with the vehicle’s existing installation.
