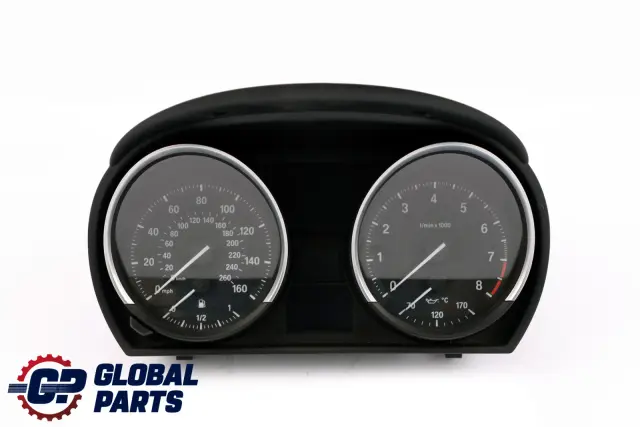

Instrument Cluster BMW E84 E90 E92 Diesel Speedometer Clocks Manual 9283842

Description

Instrument Cluster BMW E84 E90 E92 Diesel Speedometer Clocks Manual is an original instrument panel designed for BMW models with a diesel engine and a manual transmission. This dashboard component provides a clear reading of speed, RPM, and other vehicle operating parameters, while maintaining the factory style and consistency with the interior. By using an original solution from the Single dashboard instruments group, you receive a component that is structurally and electrically matched for installation in selected BMW models.

Specifications and technical data

• SKU: rhd-9283842-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9283842
• Substitutable numbers: 62109316154, 9316154, 62109220990 62109283842 62109148031, 62109242373 62109166861 62109119933, 9220990 9283842 9148031 9242373 9166861 9119933, 62109148048, 9148048, 62106983498 6211696578962109187371, 62109130300 62109187087 62109110216, 9130300, 9187087, 9110216
• Fuel type: Diesel
• Gearbox type: Manual
• Category: Individual Gauges

Purpose and compatibility

The presented instrument cluster has been designed for the BMW E84, E90, and E92 series with diesel engines and manual transmissions. This means that the tachometer scale, indication logic, and warning lights are adapted to the characteristics of diesel units and for cooperation with a mechanical transmission.

The panel is an OEM component, which translates into proper fitment with the electrical wiring, vehicle communication bus, and factory controller software. As a result, correct cooperation with onboard systems, such as the engine control unit, safety modules, or comfort systems, is maintained.

Functions and role in the vehicle

The instrument cluster plays a key informational role in the driver’s cabin. It is responsible for presenting basic driving parameters, such as vehicle speed or engine operation, as well as displaying warning and control signals. The clear layout of dials and indicators makes it easy to quickly grasp essential information without taking your eyes off the road for longer than necessary.

As an element from the Single dashboard instruments group, the panel works with other onboard electronic modules, creating a coherent diagnostic and information system. Proper operation of the instrument cluster has a direct impact on vehicle comfort and safety, as the driver receives ongoing signals about any potential irregularities.

Benefits of using an original instrument cluster

Choosing an original instrument panel for the BMW E84, E90, and E92 brings a number of practical benefits:

• Factory fitment – maintaining compatibility with the electrical installation, CAN communication, and dashboard structure.
• Consistent interior aesthetics – the appearance corresponds to BMW styling standards for the given model generation.
• Predictable electronics behavior – correct cooperation with existing control modules and safety systems.
• Possibility to use existing mounting points – installation without the need for structural modifications.

By using an OEM component, you gain certainty that the operating parameters and the way data is presented will be in line with the vehicle manufacturer’s specifications, which is particularly important for cars with a diesel engine and a manual transmission.

Service and replacement application

This instrument cluster will work well both for standard replacement of a damaged panel and for service work related to dashboard electronics. The used OEM component allows for economical repair while maintaining the factory operating parameters of the system. In practice, this means the ability to restore full functionality of the indicators without the need to use replacements of uncertain compatibility.

When selecting the element, it is worth paying attention to compatibility with the fuel type and transmission type to ensure correct scaling of indications and proper handling of indicators. If necessary, matching by reference numbers and manufacturer markings may also be helpful, which facilitates the work of workshops specializing in BMW electronics.

Modernization expansion and technical knowledge

If you are planning a comprehensive repair or modernization of the cockpit area in your BMW and need other elements from the same group, such as additional gauges, display modules, or single clocks, check the available parts in the BMW Single dashboard instruments category.

When working with onboard electronics – including instrument clusters, control modules, or sensors – it is worth expanding your knowledge on the selection and installation of used components. Practical tips on verifying compatibility, working with OEM numbers, and installation principles can be found in the Global Parts guide: Used automotive electronics on board – why is it worth choosing second-hand ECU modules and sensors?.
