Description

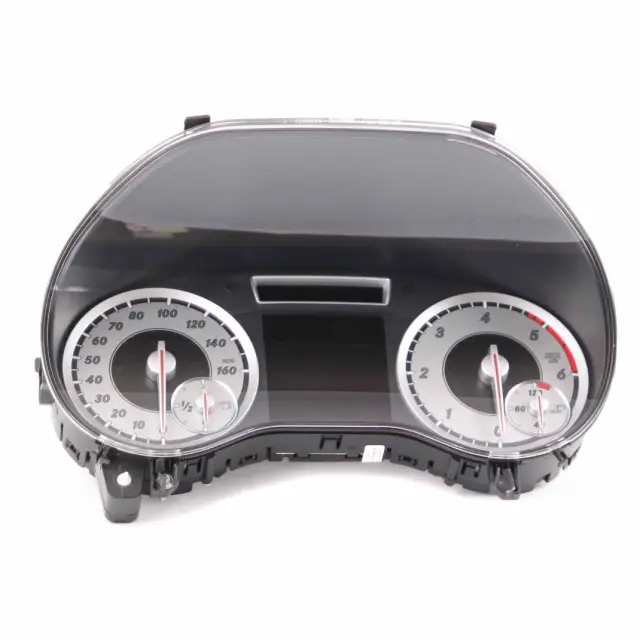

The Mercedes W176 Instrument Cluster for Diesel Engines with Automatic Transmission is a factory instrument panel designed for the W176 generation A-Class models. This used, original speedometer and tachometer cluster ensures seamless integration with the vehicle’s electronics and maintains the factory display logic, which is crucial for professional repair or replacement of the instrument cluster assembly.
Specifications and technical data
- SKU: rhd-A1769009401
- Mark: Mercedes (Genuine OE)
- Condition: Used
- OEM Part Number: A1769009401
- Substitutable numbers: A1769009401, A 176 900 94 01, BG
- Fuel type: Diesel
- Gearbox type: Automatic
- Category: Instrument Clusters
Purpose and Compatibility
The presented instrument cluster for Mercedes W176 is designed to work with diesel engines and automatic transmission systems. This means that the display logic, speedometer, tachometer scales, and system messages are adapted to the characteristics of a diesel engine and automatic gearbox.
A cluster configured this way is the correct choice for replacing a damaged unit in W176 A-Class vehicles that are factory-equipped with a diesel engine and an automatic transmission. This ensures proper cooperation with control modules and the vehicle’s safety systems.
Functionality and Vehicle Integration
The speedometer in this model serves as the central interface between the driver and the car’s electronics. It is factory-adapted to:
- accurately display diesel engine operating parameters,
- work with the automatic transmission, including displaying the current operating mode,
- integrate with the W176 A-Class onboard systems (e.g., warning messages, service information).
By retaining its original internal architecture, the instrument panel enables stable communication with the vehicle’s bus, minimizing the risk of errors and incompatibilities after installation.
Category, Brand, and Technical Specifications
This product belongs to the instrument clusters category, which are factory-fitted instrument assemblies installed in the dashboard. It is a component dedicated to Mercedes vehicles, guaranteeing compliance with the manufacturer’s factory standards in terms of electronics, software, and display ergonomics.
The configuration for diesel engines and automatic transmissions means that the cluster’s internal software has been prepared for the specific operating parameters of such a powertrain. In practice, this translates to:
- appropriately selected tachometer scale ranges,
- adapted messages related to the operation of the automatic transmission,
- compatibility with the vehicle’s diagnostic systems.
Condition and Service Application
The offered instrument panel is a used part, making it an attractive solution for accident repairs, replacing a damaged cluster, or restoring full cockpit functionality in fleet vehicles. Choosing an original instrument cluster helps maintain the factory interior appearance and compatibility with the existing electrical system.
Before installation, it is recommended to perform standard service procedures, such as verifying software compatibility with the vehicle and, if necessary, adjusting parameters at a specialized service center to ensure the correct operation of all cluster functions.
Related Products and Technical Knowledge
If you are looking for other Mercedes instrument clusters tailored to different models and powertrain configurations, check out our dedicated category: Mercedes instrument clusters. There you will find a wide selection of speedometers and instrument panels for many generations of this brand’s vehicles.
To compare the characteristics of sports powertrains with solutions used in standard models, it is worth familiarizing yourself with the analysis of engine and chassis designs in premium cars – you can find practical information in the article: Audi RS vs. Other Models – What’s Under the Hood and Chassis?.
