Description
Every year, brand gathers incredible amounts of suspension data from direct involvement in many different racing series. This specialized data goes directly into sports parts development to provide the customer with the same cutting edge suspension technology APEXi uses on all of race vehicles.
Notes: This product is Non-Returnable.
Specifications:
– Internal Design: Monotube
– Shock Absorber Type: Gas Charged
– Damping Type: Normal
– Adjustment Type: Single Adjustment
– Levels of Adjustment: 25 Levels
– Front Damping Adjustment: Yes
– Rear Damping Adjustment: Yes
– Front Height Adjustment Type: Full Height
– Rear Height Adjustment Type: Full Height
– Piston Diameter: 46 mm
– Reservoir: Without External Reservoir
– Front Upper Mount Type: Pillow Ball
– Rear Upper Mount Type: Pillow Ball
– Front Camber Plates: No
– Rear Camber Plates: No
– Front Coil Spring Tall: 9.0″ (230 mm)
– Rear Coil Spring Tall: 9.0″ (230 mm)
– Front Coil Spring Inner Diameter: 2.6″ (65 mm)
– Rear Coil Spring Inner Diameter: 2.6″ (65 mm)
– Front Axle Load up to: 1188 kg (2619 lbs)
– Rear Axle Load up to: 1050 kg (2315 lbs)
– Front Coil Spring Rate: 12 kg/mm (672 lbs/in)
– Rear Coil Spring Rate: 10 kg/mm (560 lbs/in)
– Front Max Usable Stroke: 3.88″ (99 mm)Rear Max Usable Stroke: 4.13″ (105 mm)
Features:
– 25-Way damping force adjustment to adapt to a variety of driving conditions
– Monotube design with 46mm. diameter piston
– Adjustable lower case design that allows ride height to be adjusted without affecting preload
– Standardized 65mm. (ID) spring allows the use of a wide variety of readily available springs
– Front strut- type setups include camber adjustment plates that utilize premium quality pillow-ball spherical bearings to minimize deflection, binding, and noise
– GT race quality damper fluid that can withstand high temperatures and prevent damping force degradation
– 100% Made in Japan, with precision Japanese components
– Overhaul services available
Includes:

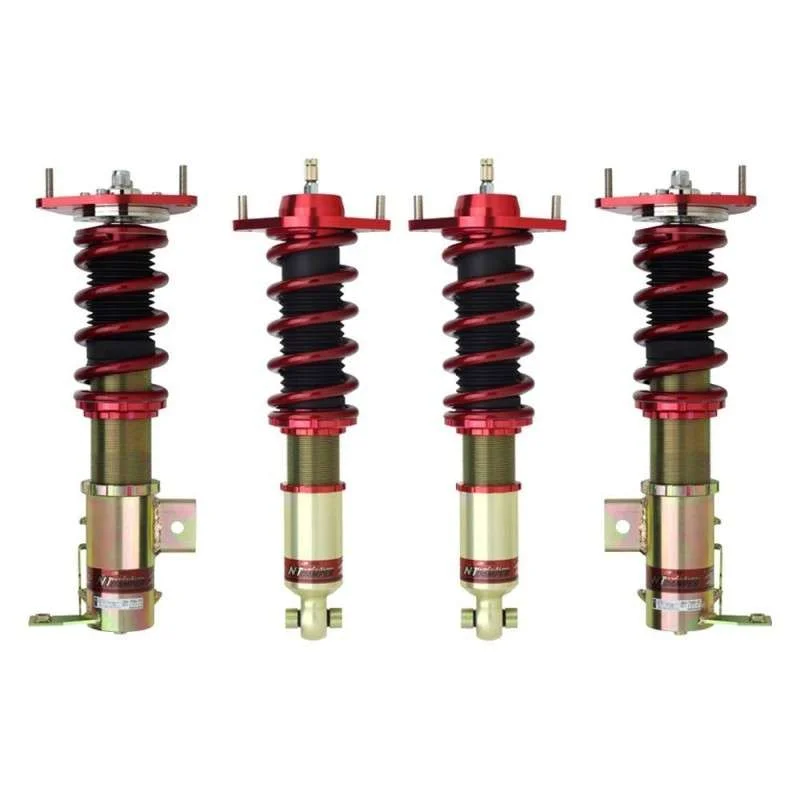

– (2) Front Coilover Shock Absorbers
– (2) Rear Coilover Shock Absorbers
– (2) Front Coil Springs (Part Number 244S9120)
– (2) Rear Coil Springs (Part Number 244S9100)
– (2) Front Pillow Ball Upper Mount (Part Number 256AN04F)
– (2) Rear Pillow Ball Upper Mount (Part Number 256AN05R)
– (2) Height Adjustment Wrench
– Instruction Manual
Each N1 Evolution Damper is made CUSTOM (made-to-order), specifically to the demands of the customer. Whether it be for STREET, DRIFT, or CIRCUIT use, data is collected from the customer about the vehicle specifications and conditions to ensure the best assembly for the use required.
