Description

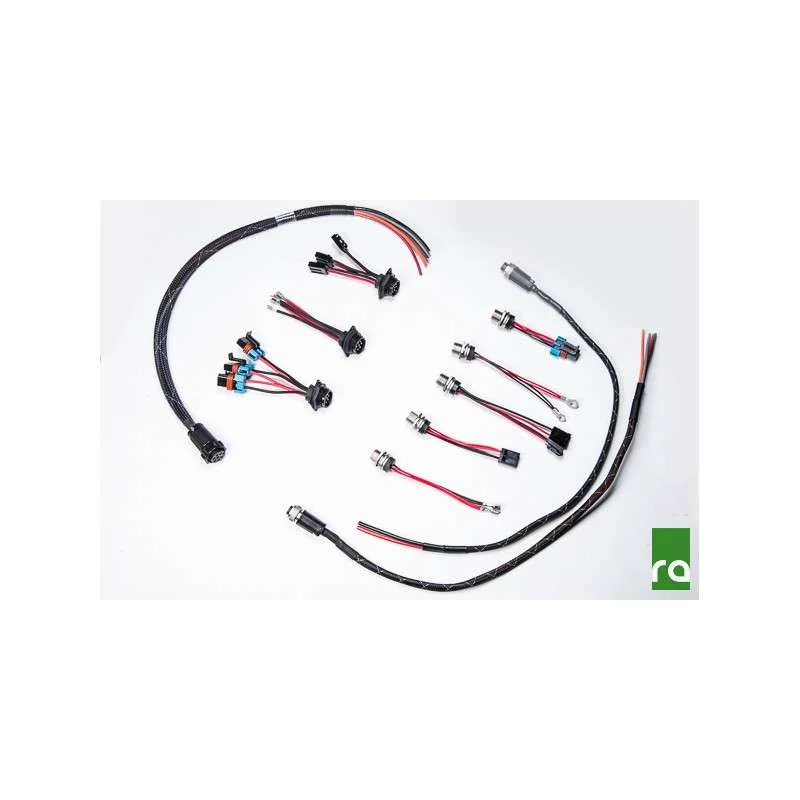

External harness wires use 24″ long 10AWG TXL insulated wires. Internal harness use 12-14AWG PTFE insulated wires.
Metal Shell Harnesses and Compatible Bulkheads:
Plastic Shell Harness and Compatible Bulkheads:
All panels must be 0.06-0.18 inches thick. See the drawing below for cutouts for each bulkhead connector. A gasket is included on the large connector and the small connector includes an O-ring for sealing against panel surface.
Radium P/N: 17-0034 and P/N: 17-0036 are external flying lead harness replacements. These are for users that require a seamless connection to the upstream component/controller(s). Along with the connector, terminals, hardware, and seals are included. Wire assembly required. Dimensions shown below.
